Flexible Magnets

Quantity:

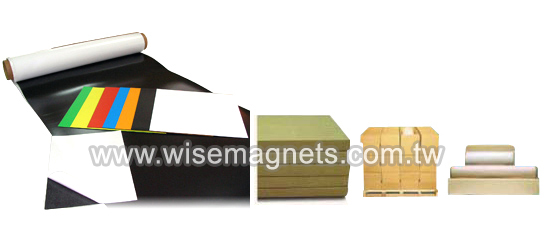

Flexible Magnets

The permanet Flexible Magnets had secured the certification tests by EN71, RoHS, ASTM and Phalate...etc. The magnetization side was processed by matt UV coating in 200 °C, it is not only can isolate heavy metal to get in touch body directly but also can be resistant scratch and won't leave fingerprinting.

 Grade :  Anisotropic / Isotropic
Thickness Width  Length    Lamination   Color
0.18mm~2mm 620 mm Sheeting,  Roll  Colorful PVC (vinyl), Colorful White- Board  Red, Yellow, Blue, Green , Black, White , Orange

Self-Adhesive Tape,  Spark Film


0.3 mm~0.7mm 1000 mm Sheeting, Roll   White PVC (vinyl)  White

Grade Data

ISOTROPIC Grade

  • Flexible Magnet Component: The Flexible Magnet of MR 939 is bonded with the STRONTIUM Ferrite Powder (Sr Fe 12 O19 )
  • Flexible Magnet Thickness Tolerances: +/- 0.03 m/m
  • Flexible Magnetic properties Grade : MR 939
PROPERTY UNITS  TYPICAL VALUES
Maximum Energy Product Bhmax MG Oe 0.63~0.73
Residual Induction (Br) GAUSS 1835
Coercive Force Hc Oersted 1250
Inherent Coercive Force Hci Oersted 1900

Properties

  • Hardness: 50 degree~52 degree
  • The high-quality magnetic material can be coiled to 1/4" radius.
  • The flexible magnetic sheeting performs well in Temperature from 20°C~180°C without cracking.
  • Specific Gravity: 3.6

ANISOTROPIC Grade

  • Component: The Flexible Magnet of MR950 is bonded with the STRONTIUM Ferrite Powder (Br Fe 12 O19 )
  • Thickness Tolerances: +/- 0.03 m/m
  • Magnetic properties Grade : MR 950
PROPERTY UNITS  TYPICAL VALUES
Maximum Energy Product Bhmax MG Oe 1.6
Residual Induction (Br) GAUSS 2600
Coercive Force Hc Oersted 2300
Inherent Coercive Force Hci Oversted 2880

Properties

  • Hardness:54 degree
  • The high-quality magnetic material can be coiled to 1/4" radius.
  • The flexible magnetic sheeting performs well in Temperature from from 20°C~180°C without cracking.
  • Specific Gravity: 3.7

Specification:
Our company has been cumulating over 20 years experience of manufacturing Flexible Magnet.
Grade: Anisotropic, Semi-Anisotropic, Isotropic
Lamination: PVC (vinly), Self-Adhesive Tape, Art Paper, PP Paper
Certification: ASTM, RoHS, EN-71, REACH, Phthalate
